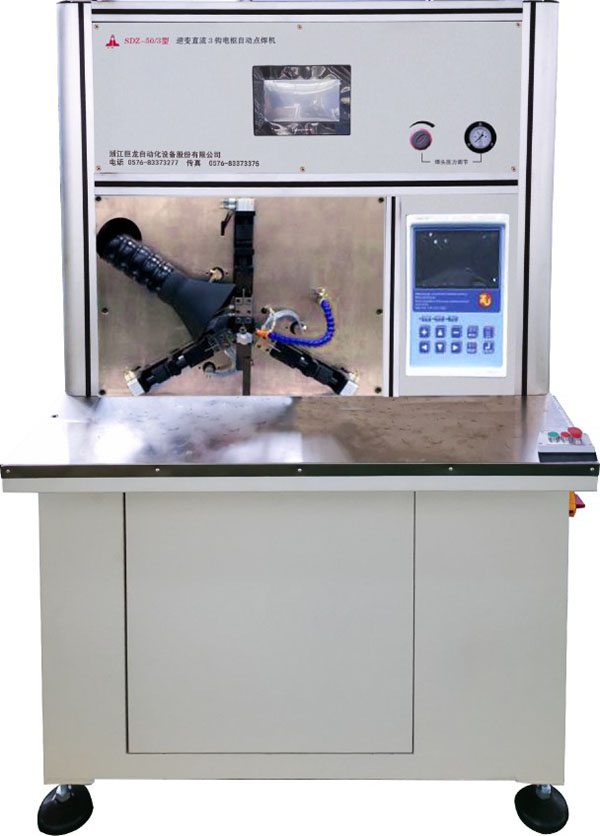

（3鉤/5鉤可選）SDZ- 50/3 50/5型 逆變直流電樞自動點焊機
SDZ-50/3 Armature Automatic Spot Welding Machine（dc Output）
本機適用于三鉤以及五鉤小電機換向器的一次性同時下壓焊接的專用設備。采用進口PLC程控，彩色觸摸屏顯示及修改參數，高頻逆變直流焊接電源系統，一次控制三個或五個機頭同時下壓，采用掃描方式完成三個或五個通道的放電，一次即可焊好三個或五個工位，生產效率大大提高。有定電壓，定電流，定功率放電輸出模式，有異常報警功能，檢修方便。
This machine is suitable for the one-time simultaneous pressure welding of three hooks and five hooks of small motor commutators. It adopts imported PLC for control, color touch screen display for parameters modification, high-frequency DC output type welding power supply system, three heads or five heads can press at the same time, and three or five channels of discharge are completed by scanning method, and three or five stations can be welded at one time. The production efficiency is greatly improved. There are constant voltage, constant current, constant power discharge output mode, abnormal alarm function, convenient maintenance.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.4-0.7Mpa |
|
變壓器輸出電流 Transformer output current |
5000A |
| 單臺變壓器額定容量 Transformer rated capacity | 18KVA |
| 換向器槽數 Commutator slots |
3/5 |
| 換向器外徑 Commutator OD |
Φ3-Φ10mm |
| 鐵芯外徑 Core OD |
Φ15-Φ25mm |
| 軸芯外徑 Shaft OD |
Φ2-Φ5 |
