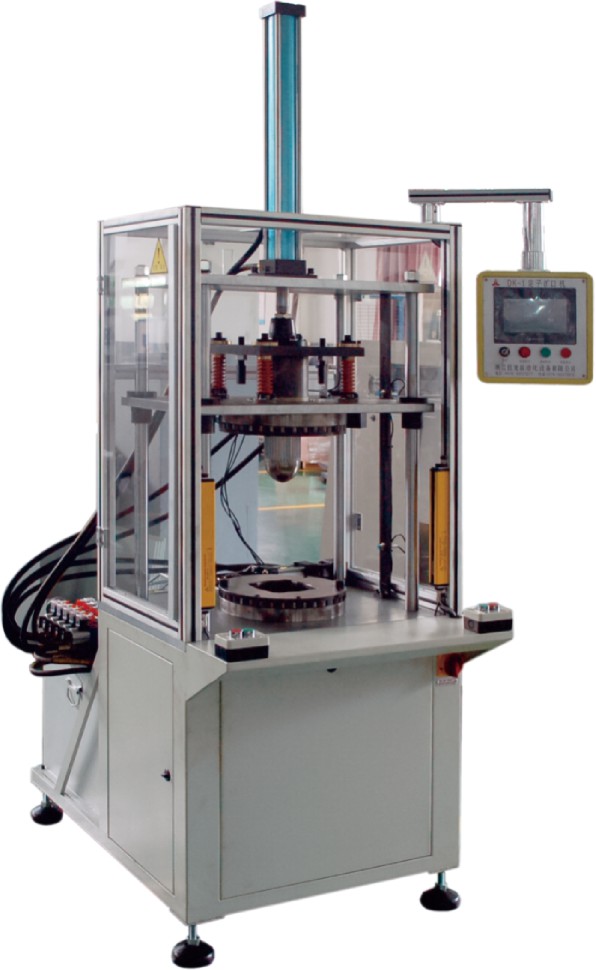

DK-2型 定子擴口機
DK-2 Stator Pre-expanding Machine
適用于電機嵌線后線圈兩頭擴口預整形的專用設備。采用三菱PLC程控，觸摸屏顯示，放入工件后，自動下行，到位擴口，接近開關控制行程，機械限位，一體式液壓站，雙按鍵啟動，配有光電保護開關，安全可靠，操作簡單。
Suitable for pre-shaping of the two ends of the coil after the motor is embedded. Mitsubishi PLC control, touch screen display, into the workpiece, automatically down, in place flaring, proximity switch control stroke, mechanical limit, integrated hydraulic station, dual button start, with photoelectric protection switch, safe and reliable operation simple.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
液壓壓力Hydraulic Pressure |
0~7 MPa |
|
總功率Total power |
3kw |
| 最大定子內徑Max.Stator ID | ≤Φ160 mm |
| 最小定子內徑Stator ID |
≥Φ40 mm |
| 定子疊厚Core thickness |
20~280mm |
|
|
|
