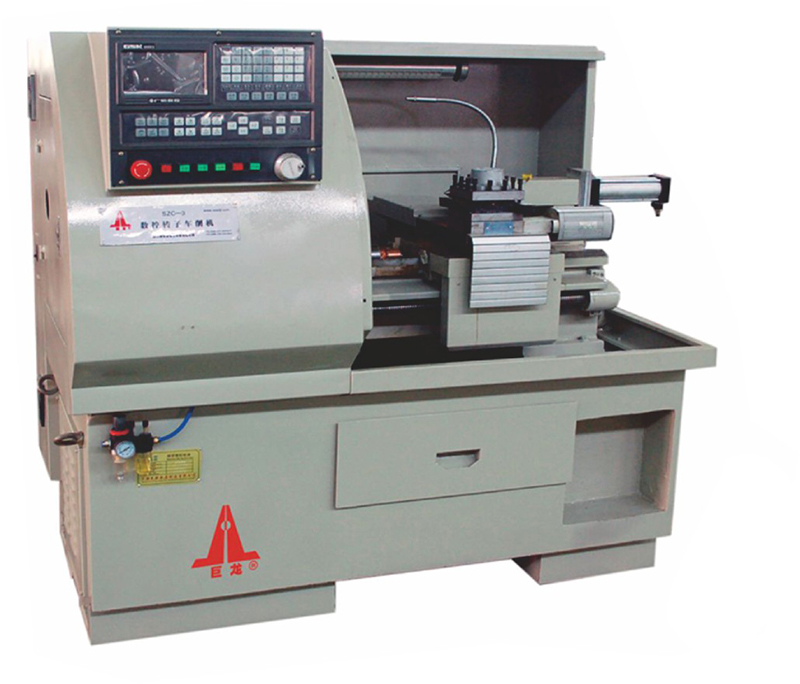

SZC-3型 數控轉子車削機
SZC-3 Rotor and Commutator Turning Machine
本機適用于起動電機及類似微電機轉子(電樞)經滴漆、滾漆后，對轉子鐵芯外園，換向器點焊后端面及換向器外園的粗車。本機以通用數控車床為基礎，增加氣動頂尖，自動預托轉子支承，尾座自動頂入和退出。采用四工位電動自動旋轉刀架，CNC程控，生產效率高。車削產品質量可靠。
This machine is suitable for starting motor and similar micro-motor rotor (armature) by dripping paint, roll paint, the rotor coreoutside the park, the commutator after welding the end face and commutator outside the rough car.This machine is based on the general CNC lathe, increase the pneumatic top, automatic preload rotor support, tailstock automatic top entry and exit. 4 work stations of electric automatic turret, CNC program-controlled, high production efficiency.high quality.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa
|
|
最大車削直徑Max turning diameter |
Φ140mm
|
|
主軸轉速Spindle speed |
≤1500r/min
|
| 總功率Total power |
3kw
|
| 工位數Number of workstations |
4 |
