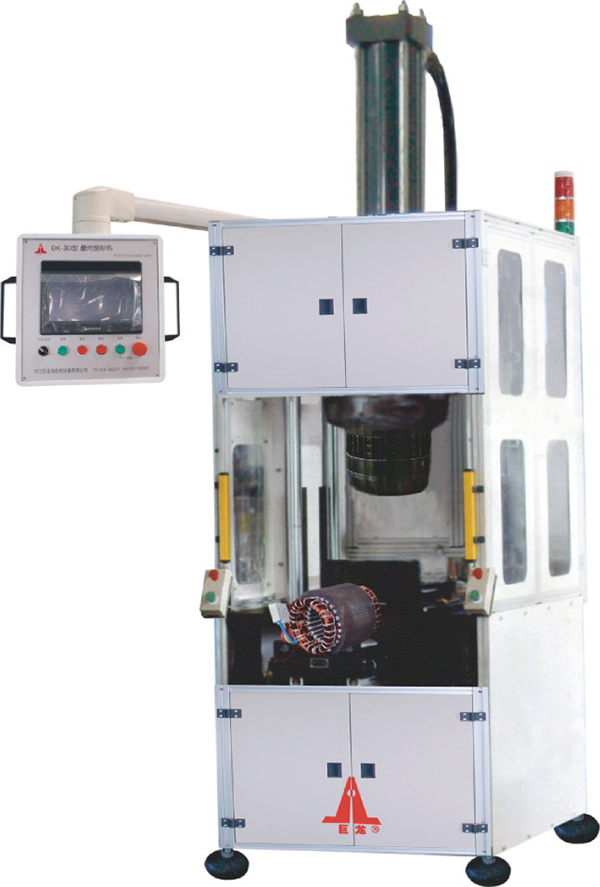

DK-3D型 最終整形機
上傳時間：2019-05-31
DK-3D Final Forming Machine
本機適用于定子線圈綁扎后的最終整形。采用進口PLC程控，彩色觸摸屏控制，臥式進出工位結構設計，液壓系統作為源動力，模具內漲、外包，端部壓形最終成形，保壓時間可調。
Suitable for the final forming after the
lacing. Adopting imported PLC programmable control, color touch screen control,
horizontal access station structure design, hydraulic
system as the source power, mold up, outsourcing, end pressure forming final
shape,packing time adjustable.
技術參數/Technicai Parameters
|
電源電壓Supply voltage
|
AC380V±10% 50Hz
|
|
總功率Total
power
|
5kw
|
|
定子疊厚Core thickness
|
16~160mm/50~300mm
|
|
定子內徑Stator ID
|
Φ30~120/Φ50~200mm
|
|
定子外徑Stator OD
|
≤Φ300 mm
|
